Vehicles
From sport cars to heavy duties, our full vehicle EMC chambers are ready to test the latest developments for electric and ICE vehicles of any size.
As vehicle electronic development advances, EMC testing is gaining growing importance as a means to guarantee safety and reliability.
EMC validation at the component level is necessary, but interactions between electronic systems must also be checked at the vehicle level. We are market leaders in Europe for EMC testing at both component and vehicle levels, with large, versatile EMC chambers dedicated to full-vehicle testing.

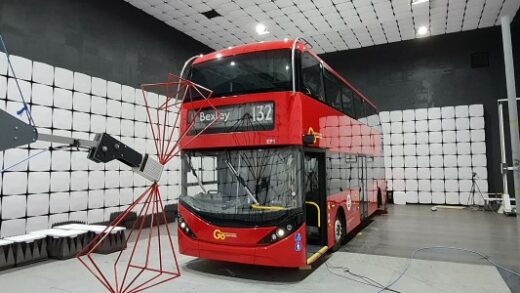

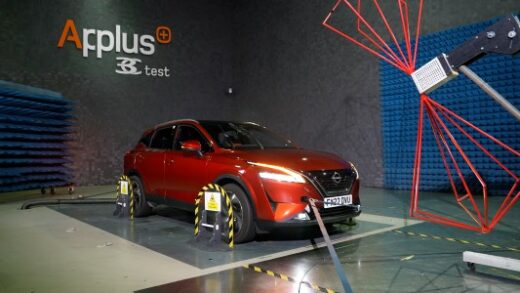

Two EMC chambers to test any vehicle
Whether you are developing the latest electric vehicles, luxury sports cars, excavators or electric double-deck buses, Applus+ 3C Test is your test house for EMC compliance
Vehicles Tested
- Commercial Vehicles: EV, PHEV, HEV & ICE
- Sports Cars
- Medium-size Heavy Duties
Equipment & Characteristics
- Size: 18.2 x 12.7 x 8.1 m
- Door: 4.5 x 4.5 m
- Max. Weight: 20 t
- Dynamometer: 4WD integrated chassis dynamometer, low EMI noise for dynamic tests, low clearance for sports cars
- Charging Mode Tests: Dedicated system (AC & DC)
Vehicles Tested
- Commercial Vehicles: EV, PHEV, HEV & ICE
- Sports Cars
- Buses (Electric and ICE)
- Vans, Trucks, Off-road Vehicles
- Construction & Agriculture Machinery
Equipment & Characteristics
- Size: 22 x 14.5 x 8.5 m
- Door: 5 x 5 m
- Max. Weight: 50 t
- Dynamometer: 4WD integrated chassis dynamometer, low EMI noise for dynamic tests, low clearance for sports cars
- Charging Mode Tests: Dedicated system (AC & DC)
FULLY ACCREDITED TO TEST ALL RELEVANT EMC STANDARDS
- ISO 11451-2: Antenna and TLS immunity tests up to 140 V/m from 10 kHz – 6 GHz
- ISO 11452-3: Vehicle on-board immunity
- ISO 10605: Electrostatic Discharge tests
- ICNIRP / IEC TS 62764-1: Human exposure tests
- CISPR 12: Vehicle off-board emissions
- CISPR 25: Vehicle on-board emissions
- CISPR 36 / GBT 18387 / SAE J551-5: Electric and magnetic field emissions
- Radio reception quality (FM/DAB, GNSS…)
EMC CONSULTING FOR OEM
EMC testing is a critical step for vehicle compliance, but a failed test can become a major issue in terms of time to market. Applying best practices and EMC considerations at the very early stages of development is the best way forward.
Our EMC consultants have a long track record managing EMC compliance programs, and can provide consulting services tailored to your needs.
Global Market Access
EMC TYPE APPOVAL: UNECE R10
Our EMC tests are recognized to comply with UNECE R10 (including REESS charging modes) and E-Mark certification. We also provide type approval as an authorized technical service in the UK and Ireland.
WORLD WIDE RADIO TYPE APPROVAL
Applus+ Laboratories provides global market access services for radio components and products such as TCU, eCall, ADAS systems or key fobs. Tell us your target markets and let’s get started.
